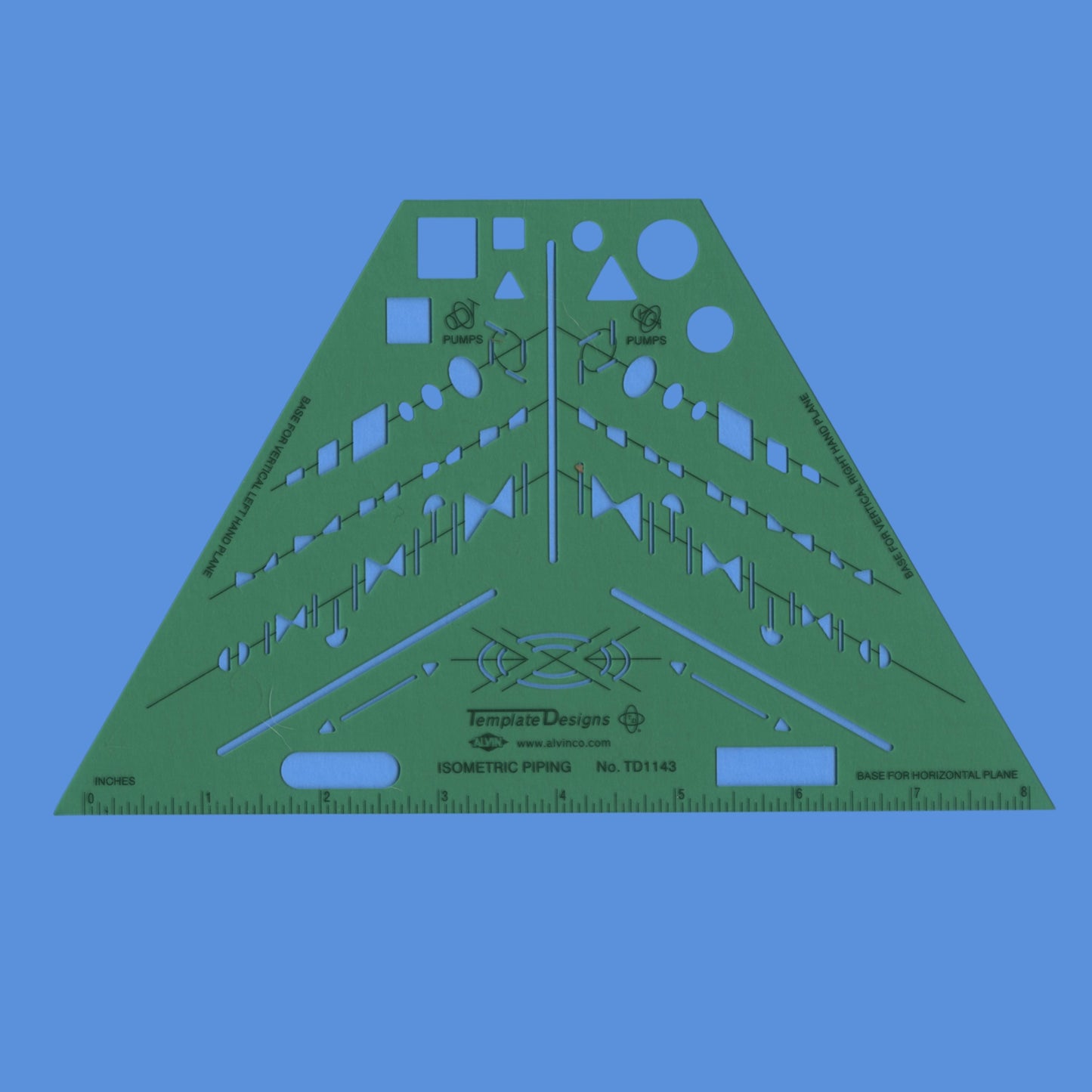

Isometric Piping Template

Isometric Piping Template

Regular price $10.57
Regular price $10.57 Sale price $10.57
Sale Sold out
Shipping calculated at checkout.


  • Various Designs - Contains valves, flanges, elbows, reducers, pumps, and caps.
  • Template Dimensions - Measures 8.5 x 5.25 x .030 inches
  • Versatile Tool - Can be tilted 3 ways; one of the 3 planes of a perspective view, all with allowance for pencil point.
  • Durable Material - Made from a sturdy yet flexible translucent plastic material that's long-lasting.
  • A Professional's Choice - Alvin has been the professional's choice for drafting tools and drawing supplies for over half a century. Since 1950, we have brought quality and value to our customers.

Proudly Made in China
